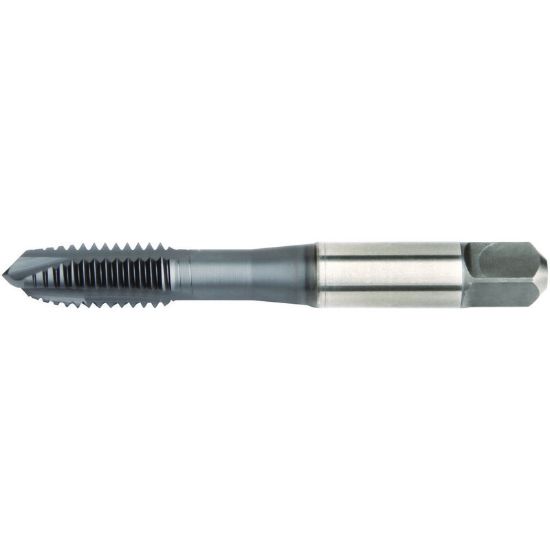

WIDIA/KENNAMETAL 5631568 No.10-24.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal TiCN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5631568
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Ohio
Application Cut Tapping, Through Hole Tapping, Plug Tapping, Tapping
Performance Rating High Performance
Made In USA No
Coating TiCN
Dimensional Specifications
Thread Type NC/UNC
Shank/Pilot Dia 0.1940 4.93MM
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Tap Square 0.1500
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tool Material Steel
Overall Len 2.3740 60.30MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Thread Pitch 24.00TPI
Flutes/Inserts 3
Flute Direction R - Right
Length Type Standard
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Thread Size No.10
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Job Shop Yes
