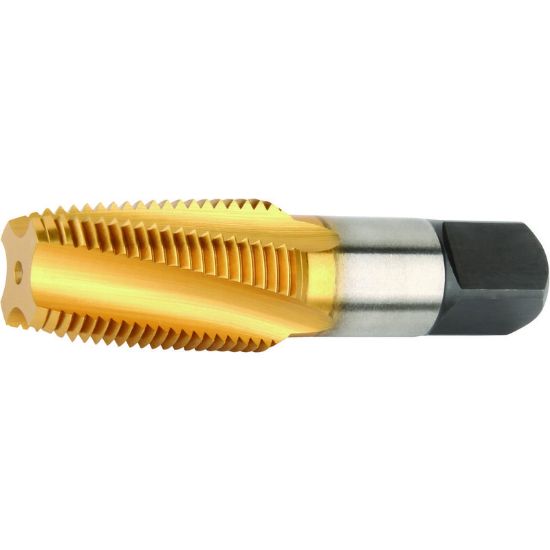

WIDIA/KENNAMETAL 5629616 1/2-14.00TPI Pipe Spiral Flute Pipe HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5629616
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Spiral Flute Pipe
Performance Rating High Performance
Shipping State Ohio
Made In USA No
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Thread Size 1/2"
Tool Material Steel
Machine Side Connection Type Tap Collet
Drill Range 17.8500 453.39MM
Tap Square 0.5120
Tap Type Pipe
Overall Len 3.1260 79.40MM
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Shank/Pilot Dia 0.6875 17.46MM - 11/16
Length Type Standard
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Flutes/Inserts 4
Thread Pitch 14.00TPI
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
