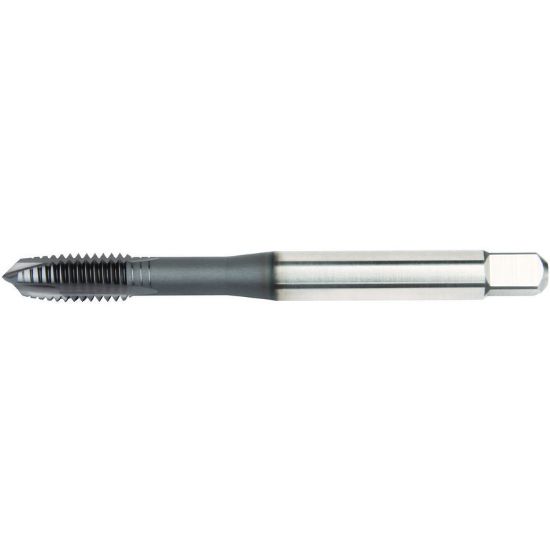

WIDIA/KENNAMETAL 5472670 1-12.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5472670
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA No
Shipping State Ohio
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Thread Pitch 12.00TPI
Machine Side Connection Type Tap Collet
Overall Len 6.2990 159.99MM
Tap Square 0.5710
Tap Style Cut Spiral Point
Thread Limit 2B
Shank/Pilot Dia 0.8000 20.32MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Thread Size 1"
Flute Direction R - Right
Length Type Standard
Thread Type NF/UNF/UNEF
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tool Material Steel
Dimension Standard DIN/DIN
Flutes/Inserts 3
Drill Range 0.9134 23.20MM - 0.9350 23.75MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
