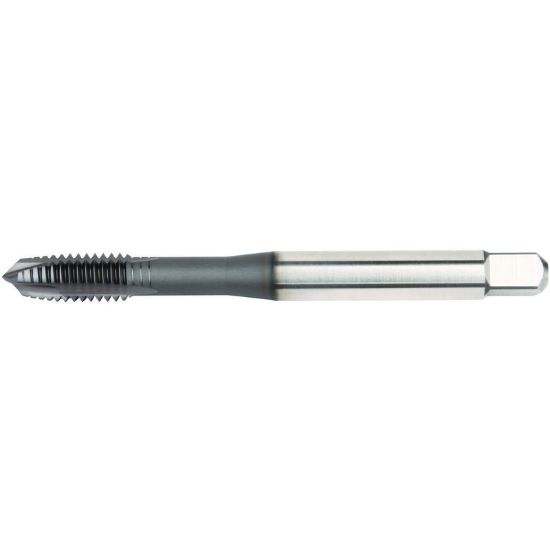

WIDIA/KENNAMETAL 5472635 No.5-40.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5472635
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Shipping State Ohio
Made In USA No
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Tool Material Steel
Tap Chamfer 3.5P-5.0P
Thread Size No.5
Thread Type NC/UNC
Flute Direction R - Right
Flutes/Inserts 2
Length Type Standard
Dimension Standard DIN/DIN
Drill Range 0.0988 2.51MM - 0.1047 2.66MM
Thread Pitch 40.00TPI
Thread Limit 2B
Shank/Pilot Dia 0.1570 3.99MM - #22
Overall Len 2.2050 56.01MM
Tap Type Plug
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Square 0.1180
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
