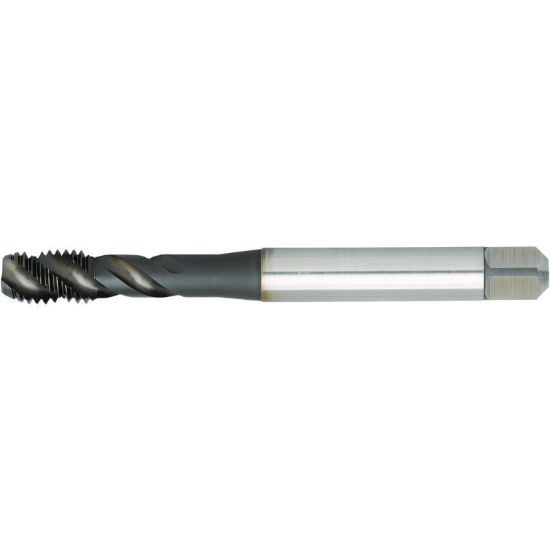

WIDIA/KENNAMETAL 5436728 1/2-13.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5436728
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Ohio
Coating DLC
Package Size 1
Dimensional Specifications
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Overall Len 4.3300 109.98MM
Tap Square 0.2730
Thread Pitch 13.00TPI
Tap Style Cut Spiral Flute
Thread Limit 2B
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Shank/Pilot Dia 0.3670 9.32MM
Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Tap Chamfer 2.5P-3.0P
Thread Size 1/2"
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
