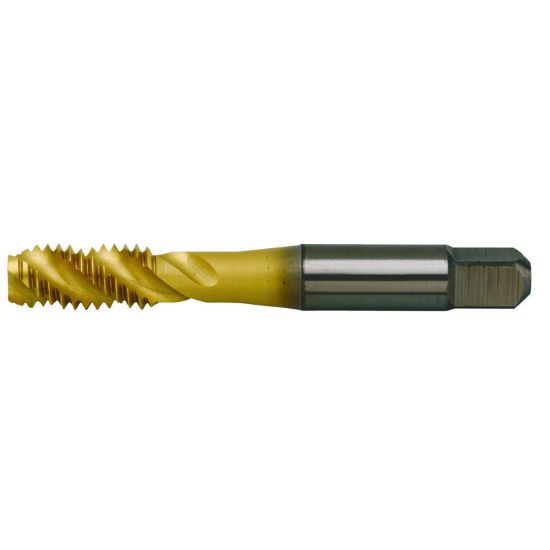

WIDIA/KENNAMETAL 5398796 M8-1.25MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5398796
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Chamfer 2.5P-3.0P
Thread Pitch 1.25MM
Dimension Standard JIS
Machine Side Connection Type Tap Collet
Tap Square 0.1970
Tap Type Mod Bottom
Tool Material Steel
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Length Type Standard
Thread Limit 6H
Tap Style Cut Spiral Flute
Thread Size M8
Flute Direction R - Right
Shank/Pilot Dia 0.2441 6.20MM
Overall Len 2.7600 70.10MM
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
