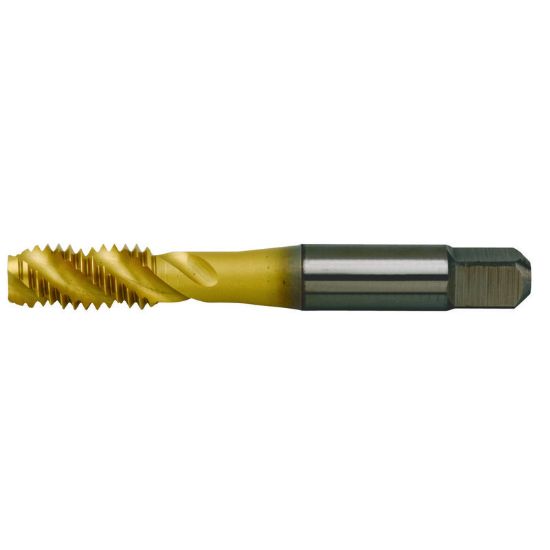

WIDIA/KENNAMETAL 5398793 M5-0.80MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5398793
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Mod Bottom Tapping, Tapping
Made In USA No
Coating TiN
Shipping State Ohio
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Shank/Pilot Dia 0.2165 5.50MM
Overall Len 2.3620 59.99MM
Flutes/Inserts 3
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Thread Pitch 0.80MM
Thread Type Metric
Flute Direction R - Right
Length Type Standard
Machine Side Connection Type Tap Collet
Dimension Standard JIS
Tool Material Steel
Thread Limit 6H
Tap Square 0.1770
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Size M5
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Chamfer 2.5P-3.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
