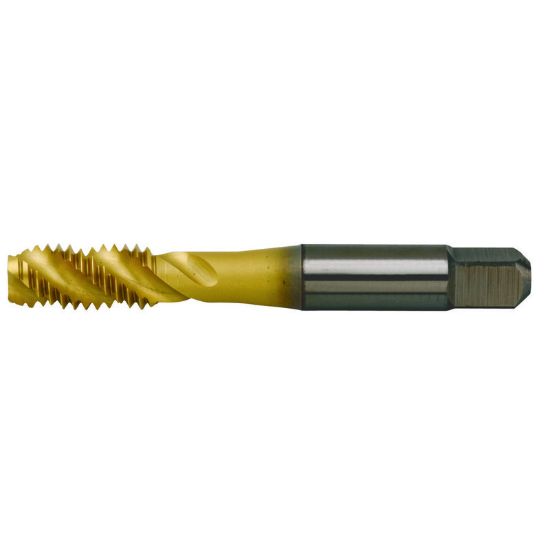

WIDIA/KENNAMETAL 5398792 M5-0.80MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5398792
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Ohio
Performance Rating High Performance
Package Size 1
Made In USA No
Dimensional Specifications
Thread Pitch 0.80MM
Thread Size M5
Flutes/Inserts 3
Thread Limit 6H
Tap Square 0.1770
Tap Style Cut Spiral Flute
Dimension Standard JIS
Tool Material Steel
Shank/Pilot Dia 0.2165 5.50MM
Overall Len 2.3620 59.99MM
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Flute Direction R - Right
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Length Type Standard
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Chamfer 2.5P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
