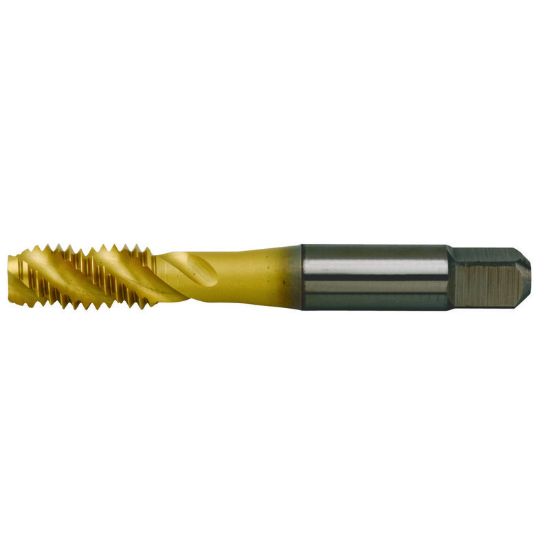

WIDIA/KENNAMETAL 5398791 M4-0.70MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5398791
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Ohio
Coating TiN
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Square 0.1570
Tool Material Steel
Shank/Pilot Dia 0.1969 5.00MM
Thread Size M4
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Overall Len 2.0500 52.07MM
Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Chamfer 2.5P-3.0P
Dimension Standard JIS
Flutes/Inserts 3
Thread Pitch 0.70MM
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
