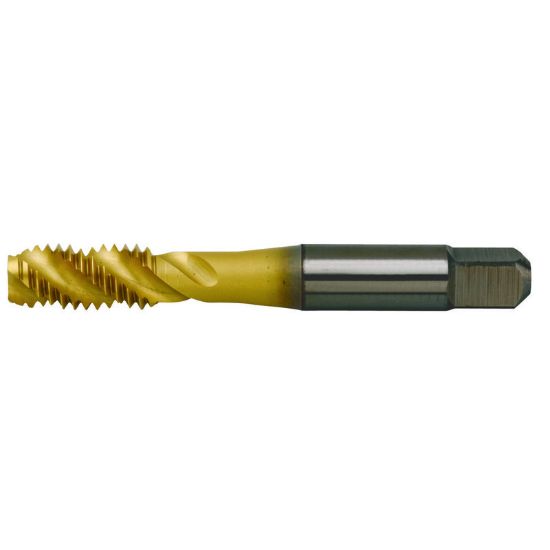

WIDIA/KENNAMETAL 5398709 M3-0.50MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5398709
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Cut Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiN
Shipping State Ohio
Made In USA No
Package Size 1
Dimensional Specifications
Thread Size M3
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Overall Len 1.8100 45.97MM
Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Tap Chamfer 2.5P-3.0P
Thread Pitch 0.50MM
Machine Side Connection Type Tap Collet
Dimension Standard JIS
Tool Material Steel
Shank/Pilot Dia 0.1575 4.00MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Flute Direction R - Right
Length Type Standard
Tap Square 0.1260
Thread Limit 6H
Flutes/Inserts 2
Thread Type Metric
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
