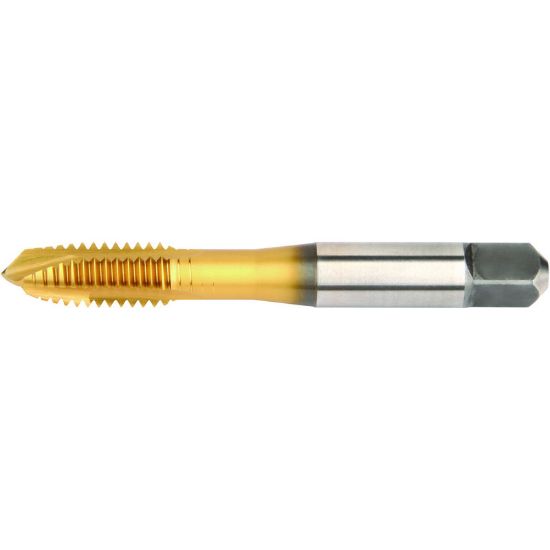

WIDIA/KENNAMETAL 5387881 M10-1.50MM Cut Spiral Point Plug 3.5P-5.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5387881
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating TiN
Package Size 1
Shipping State Ohio
Application Cut Tapping, Tapping, Plug Tapping, Through Hole Tapping
Performance Rating High Performance
Dimensional Specifications
Flute Direction R - Right
Tap Square 0.2170
Length Type Standard
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Style Cut Spiral Point
Dimension Standard JIS
Thread Limit 6H
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Thread Size M10
Overall Len 2.9500 74.93MM
Flutes/Inserts 3
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Thread Pitch 1.50MM
Tool Material Steel
Shank/Pilot Dia 0.2756 7.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
