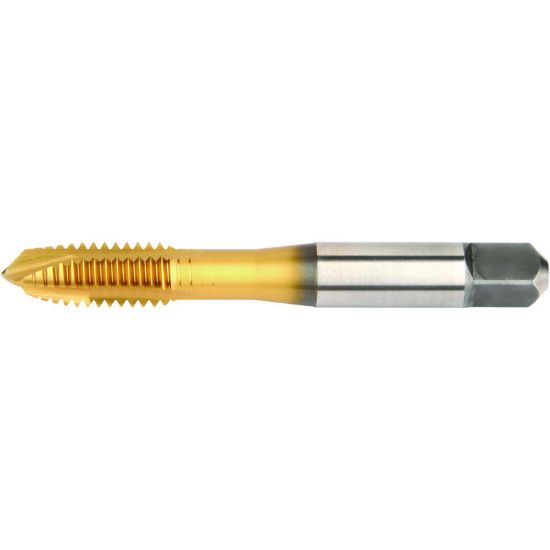

WIDIA/KENNAMETAL 5387869 M5-0.80MM Cut Spiral Point Plug 3.5P-5.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5387869
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Package Size 1
Performance Rating High Performance
Made In USA No
Coating TiN
Shipping State Ohio
Dimensional Specifications
Tool Material Steel
Thread Limit 6H
Tap Square 0.1770
Thread Size M5
Flute Direction R - Right
Flutes/Inserts 2
Length Type Standard
Machine Side Connection Type Tap Collet
Overall Len 2.3500 59.69MM
Tap Style Cut Spiral Point
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Thread Pitch 0.80MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Dimension Standard JIS
Shank/Pilot Dia 0.2165 5.50MM
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
