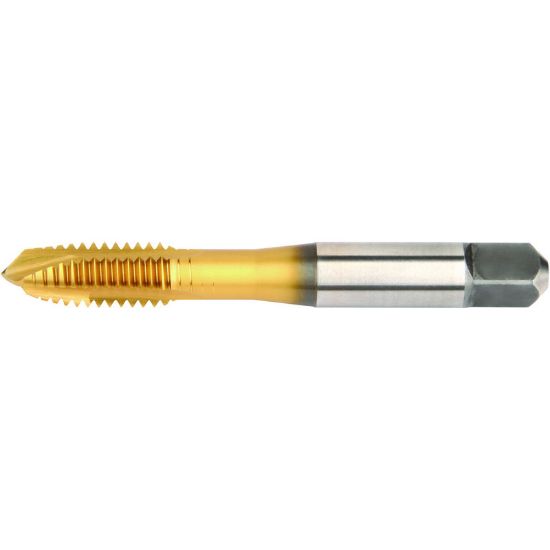

WIDIA/KENNAMETAL 5387865 M4-0.70MM Cut Spiral Point Plug 3.5P-5.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5387865
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Package Size 1
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Made In USA No
Coating TiN
Dimensional Specifications
Thread Size M4
Tap Style Cut Spiral Point
Thread Limit 6H
Flutes/Inserts 2
Thread Pitch 0.70MM
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Flute Direction R - Right
Shank/Pilot Dia 0.1969 5.00MM
Length Type Standard
Dimension Standard JIS
Thread Type Metric
Overall Len 2.0500 52.07MM
Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Square 0.1570
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Tool Material Steel
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
