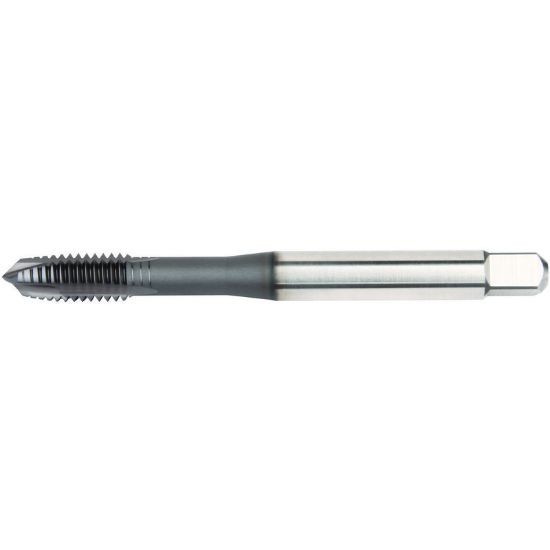

WIDIA/KENNAMETAL 5387763 No.10-24.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5387763
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Coating DLC
Dimensional Specifications
Overall Len 2.7700 70.36MM
Tap Style Cut Spiral Point
Thread Pitch 24.00TPI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Thread Size No.10
Thread Type NC/UNC
Flutes/Inserts 2
Dimension Standard DIN/DIN
Flute Direction R - Right
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Square 0.1930
Tool Material Steel
Thread Limit 2B
Shank/Pilot Dia 0.2362 6.00MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
