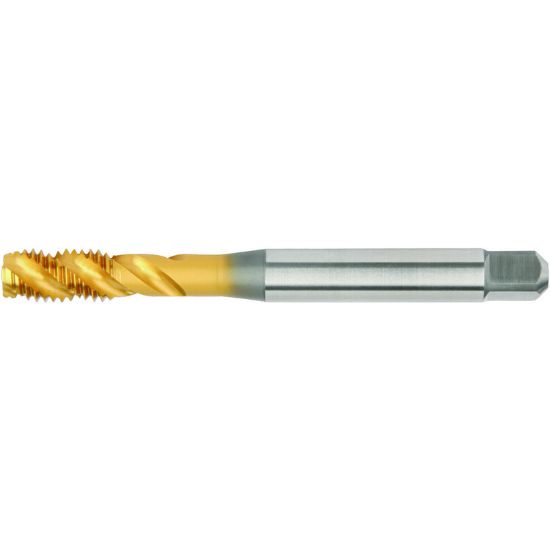

WIDIA/KENNAMETAL 5387702 1-12.00TPI Cut Spiral Flute Mod Bottom 1.5P-2.5P HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5387702
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Tapping, Mod Bottom Tapping, Cut Tapping
Performance Rating High Performance
Made In USA No
Coating DLC
Shipping State Ohio
Dimensional Specifications
Tool Material Steel
Thread Size 1"
Flutes/Inserts 4
Thread Type NF/UNF/UNEF
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Chamfer 1.5P-2.5P
Flute Direction R - Right
Length Type Standard
Thread Pitch 12.00TPI
Drill Range 0.9134 23.20MM - 0.9350 23.75MM
Tap Square 0.5710
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Limit 2B
Shank/Pilot Dia 0.8000 20.32MM
Machine Side Connection Type Tap Collet
Overall Len 6.2990 159.99MM
Dimension Standard DIN/DIN
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
