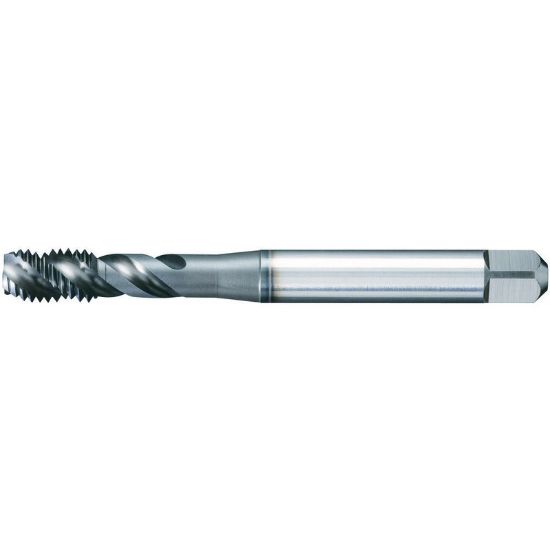

WIDIA/KENNAMETAL 5387474 M20-2.50MM Cut Spiral Flute Mod Bottom 1.5P-2.5P HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5387474
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Cut Tapping, Mod Bottom Tapping
Performance Rating High Performance
Package Size 1
Coating DLC
Shipping State Ohio
Made In USA No
Dimensional Specifications
Tool Material Steel
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Chamfer 1.5P-2.5P
Flutes/Inserts 4
Dimension Standard DIN/DIN
Thread Pitch 2.50MM
Thread Type Metric
Drill Range 0.6850 17.40MM - 0.7106 18.05MM
Thread Limit 6H
Overall Len 5.5120 140.00MM
Tap Square 0.4720
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Size M20
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.6299 16.00MM
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
