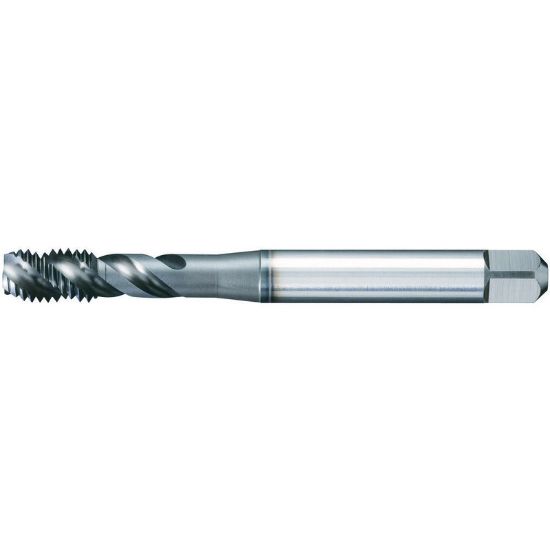

WIDIA/KENNAMETAL 5387465 M10-1.50MM Cut Spiral Flute Mod Bottom 1.5P-2.5P HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5387465
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Coating DLC
Package Size 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Ohio
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Limit 6H
Tap Style Cut Spiral Flute
Shank/Pilot Dia 0.3937 10.00MM
Tap Square 0.3150
Thread Pitch 1.50MM
Tool Material Steel
Thread Size M10
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Overall Len 3.9450 100.20MM
Flute Direction R - Right
Length Type Standard
Dimension Standard DIN/DIN
Flutes/Inserts 3
Tap Chamfer 1.5P-2.5P
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Type Mod Bottom
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
