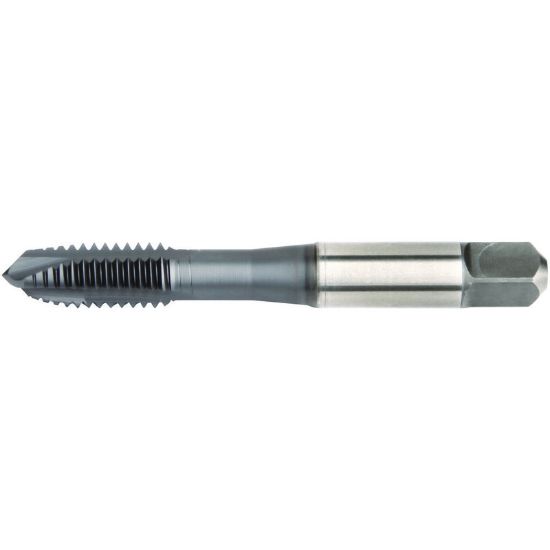

WIDIA/KENNAMETAL 5366969 7/16-14.00TPI Cut Spiral Point Plug 3.0P-5.5P HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5366969
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating DLC
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Performance Rating High Performance
Shipping State Ohio
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Length Type Standard
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Overall Len 3.1600 80.26MM
Tool Material Steel
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Thread Size 7/16"
Tap Square 0.2390
Tap Style Cut Spiral Point
Tap Chamfer 3.0P-5.5P
Thread Pitch 14.00TPI
Tap Type Plug
Thread Type NC/UNC
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
