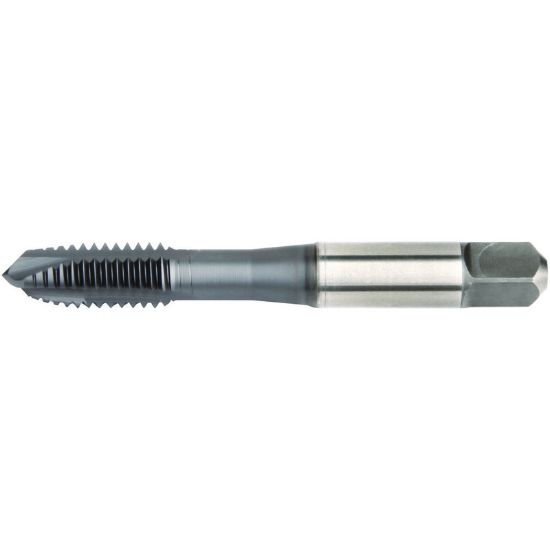

WIDIA/KENNAMETAL 5365778 No.10-24.00TPI Cut Spiral Point Plug 3.0P-5.5P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5365778
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Made In USA No
Performance Rating High Performance
Shipping State Ohio
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tap Chamfer 3.0P-5.5P
Thread Type NC/UNC
Thread Limit H3/GH3
Flutes/Inserts 2
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Tap Square 0.1500
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Flute Direction R - Right
Length Type Standard
Thread Pitch 24.00TPI
Tap Type Plug
Tool Material Steel
Overall Len 2.3740 60.30MM
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
