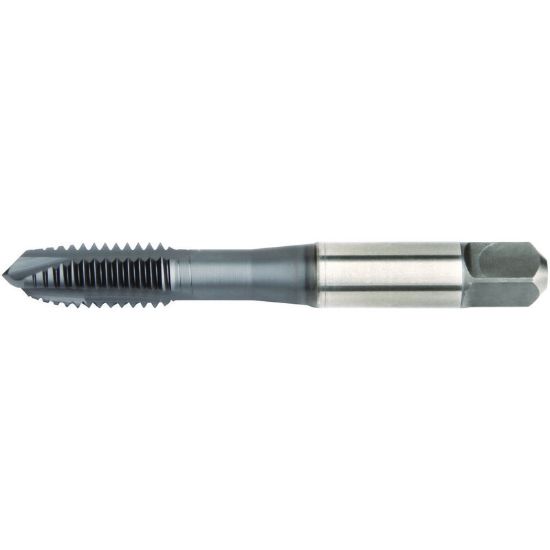

WIDIA/KENNAMETAL 5365774 No.10-24.00TPI Cut Spiral Point Plug 3.0P-5.5P HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5365774
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Coating DLC
Application Cut Tapping, Through Hole Tapping, Plug Tapping, Tapping
Shipping State Ohio
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Tap Type Plug
Thread Size No.10
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tap Chamfer 3.0P-5.5P
Thread Type NC/UNC
Thread Limit H3/GH3
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 2
Tap Square 0.1500
Tool Material Steel
Overall Len 2.3740 60.30MM
Flute Direction R - Right
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Length Type Standard
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
