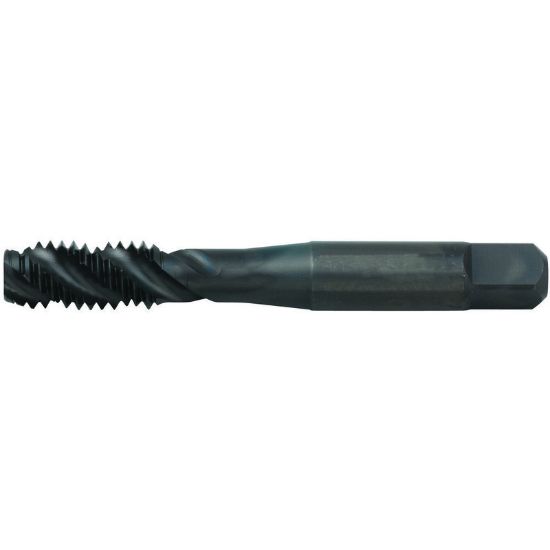

WIDIA/KENNAMETAL 5365622 M12-1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5365622
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Ohio
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Pitch 1.50MM
Tool Material Steel
Tap Square 0.2720
Flute Direction R - Right
Drill Range 0.4110 10.44MM - 0.4264 10.83MM
Length Type Standard
Flutes/Inserts 3
Thread Type Metric
Thread Limit D6
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Shank/Pilot Dia 0.3670 9.32MM
Thread Size M12
Dimension Standard ANSI/ANSI
Overall Len 3.3800 85.85MM
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
