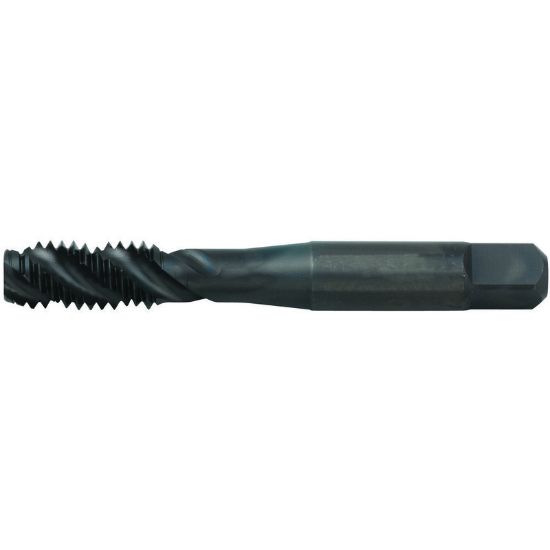

WIDIA/KENNAMETAL 5364458 1/4-20.00TPI Over Sized Bottom Bottoming 1.0P-2.0P HSSE DLC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5364458
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Tapping, Blind Hole Tapping, Over Sized Tapping
Performance Rating High Performance
Shipping State Ohio
Made In USA No
Coating DLC
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Square 0.1890
Tap Style Over Sized Bottom
Thread Limit GH7 +0.0035
Shank/Pilot Dia 0.2550 6.48MM
Tool Material Steel
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Thread Pitch 20.00TPI
Thread Type NC/UNC
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Flutes/Inserts 3
Tap Chamfer 1.0P-2.0P
Thread Size 1/4"
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
