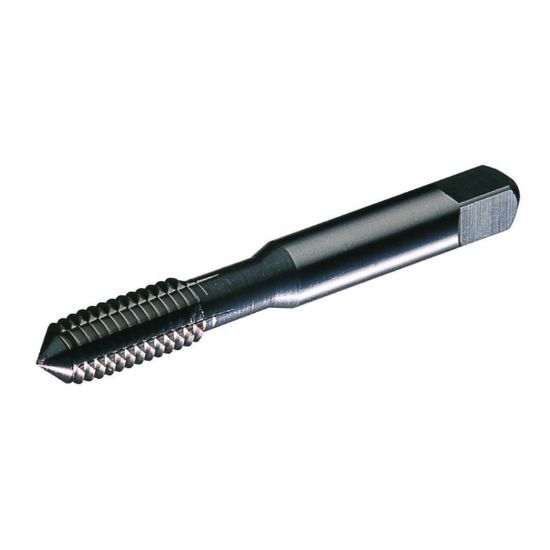

WIDIA/KENNAMETAL 19942 M4-0.70MM Roll Form Bottoming 1.0P-2.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19942
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Package Size 1
Made In USA No
Application Bottom Tapping, Roll Form Tapping, Tapping, Blind Hole Tapping
Performance Rating General Performance
Shipping State Ohio
Dimensional Specifications
Thread Size M4
Machine Side Connection Type Tap Collet
Drill Range 0.1433 3.64MM - 0.1472 3.74MM
Flute Direction R - Right
Shank/Pilot Dia 0.1680 4.27MM
Length Type Standard
Tap Style Roll Form
Tap Chamfer 1.0P-2.0P
Thread Pitch 0.70MM
Thread Type Metric
Thread Limit D6
Dimension Standard ANSI/ANSI
Tool Material Steel
Tap Type Bottoming
Overall Len 2.1250 53.98MM
Cut Rating <30HRC Steel, Stainless Steel
Tap Square 0.1520
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
