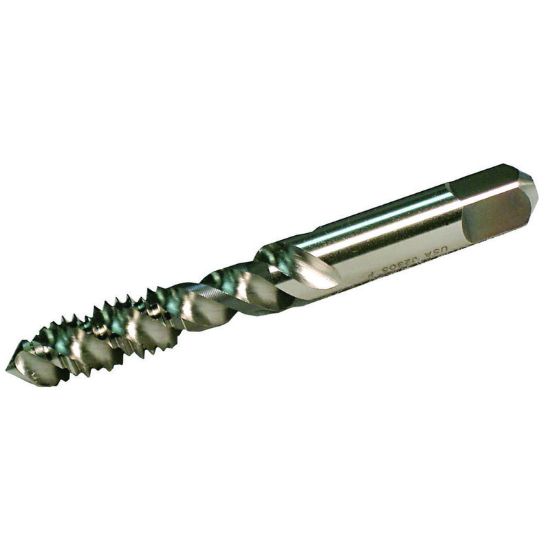

WIDIA/KENNAMETAL 19934 M6-1.00MM Cut Spiral Flute Bottoming 1.0P-2.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19934
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA No
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating General Performance
Shipping State Ohio
Package Size 1
Dimensional Specifications
Tap Chamfer 1.0P-2.0P
Tool Material Steel
Thread Pitch 1.00MM
Thread Limit D5
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Thread Size M6
Flutes/Inserts 3
Thread Type Metric
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
