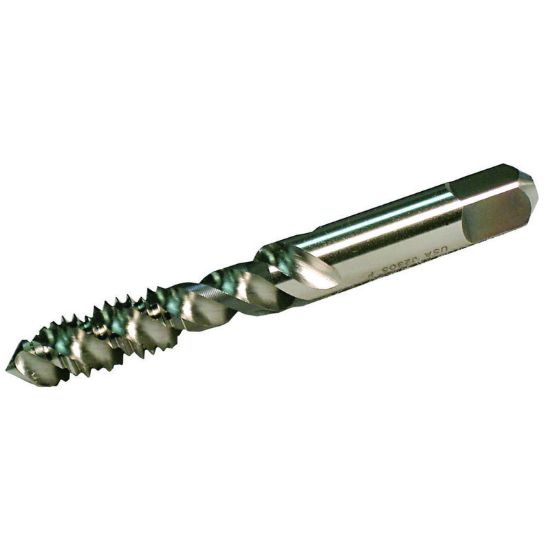

WIDIA/KENNAMETAL 19928 M3-0.50MM Cut Spiral Flute Plug 3.0P-5.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19928
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating General Performance
Shipping State Ohio
Coating TiN
Made In USA No
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Thread Pitch 0.50MM
Shank/Pilot Dia 0.1410 3.58MM
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Tool Material Steel
Machine Side Connection Type Tap Collet
Flute Direction R - Right
Flutes/Inserts 2
Length Type Standard
Thread Limit D3
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Style Cut Spiral Flute
Thread Size M3
Thread Type Metric
Overall Len 1.9370 49.20MM
Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
