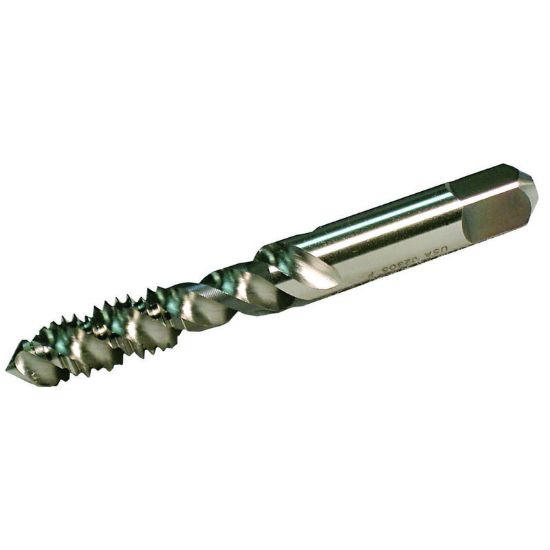

WIDIA/KENNAMETAL 19927 M3-0.50MM Cut Spiral Flute Plug 3.0P-5.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19927
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Coating TiN
Dimensional Specifications
Thread Pitch 0.50MM
Shank/Pilot Dia 0.1410 3.58MM
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Style Cut Spiral Flute
Thread Limit D3
Flute Direction R - Right
Flutes/Inserts 2
Length Type Standard
Machine Side Connection Type Tap Collet
Tool Material Steel
Thread Size M3
Thread Type Metric
Overall Len 1.9370 49.20MM
Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
