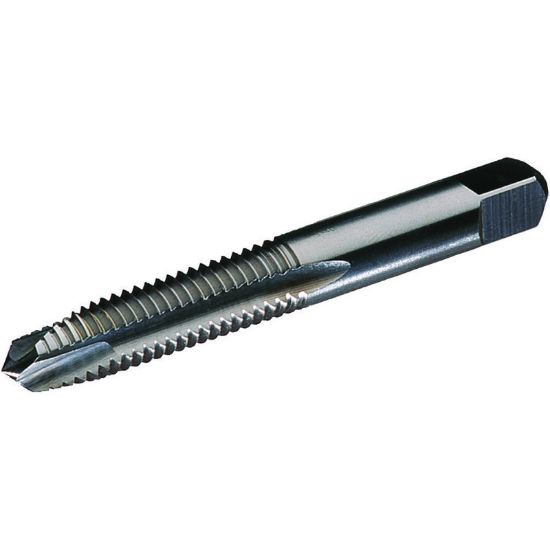

WIDIA/KENNAMETAL 19925 M10-1.50MM Cut Spiral Point Plug 3.0P-5.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19925
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Plug Tapping, Tapping, Cut Tapping
Performance Rating General Performance
Package Size 1
Coating TiN
Shipping State Ohio
Made In USA No
Dimensional Specifications
Tool Material Steel
Thread Size M10
Thread Type Metric
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Thread Limit D6
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Style Cut Spiral Point
Thread Pitch 1.50MM
Flute Direction R - Right
Overall Len 2.9370 74.60MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
