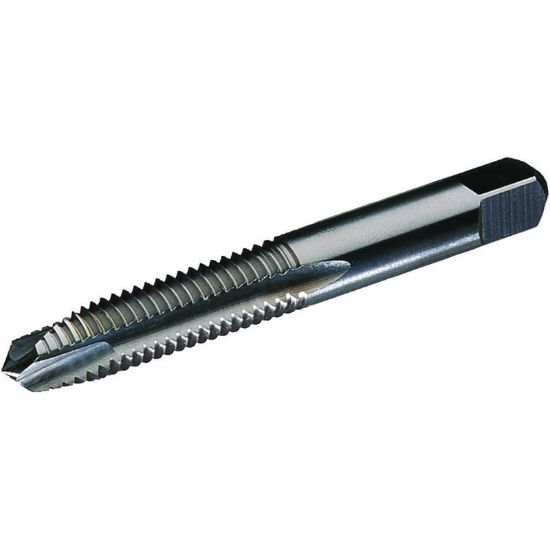

WIDIA/KENNAMETAL 19923 M6-1.00MM Cut Spiral Point Plug 3.0P-5.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19923
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Made In USA No
Performance Rating General Performance
Package Size 1
Shipping State Ohio
Dimensional Specifications
Thread Pitch 1.00MM
Thread Limit D5
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Style Cut Spiral Point
Thread Type Metric
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Flute Direction R - Right
Flutes/Inserts 2
Length Type Standard
Dimension Standard ANSI/ANSI
Tool Material Steel
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Square 0.1910
Thread Size M6
Shank/Pilot Dia 0.2550 6.48MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
