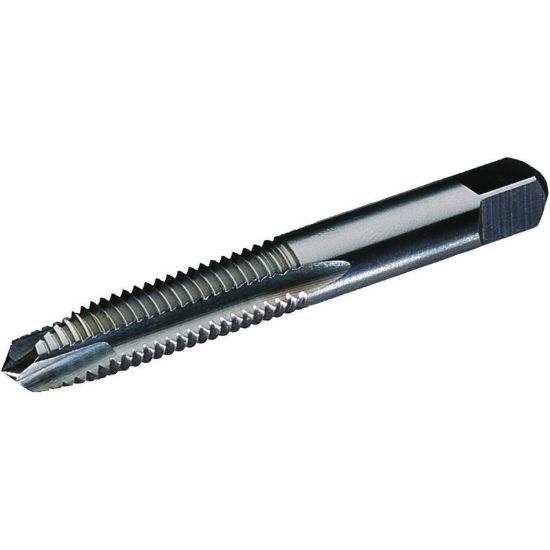

WIDIA/KENNAMETAL 19922 M5-0.80MM Cut Spiral Point Plug 3.0P-5.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19922
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating TiN
Package Size 1
Shipping State Ohio
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Dimensional Specifications
Thread Limit D4
Flute Direction R - Right
Length Type Standard
Machine Side Connection Type Tap Collet
Overall Len 2.3740 60.30MM
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 2
Tap Square 0.1500
Thread Pitch 0.80MM
Tap Style Cut Spiral Point
Thread Size M5
Dimension Standard ANSI/ANSI
Thread Type Metric
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
