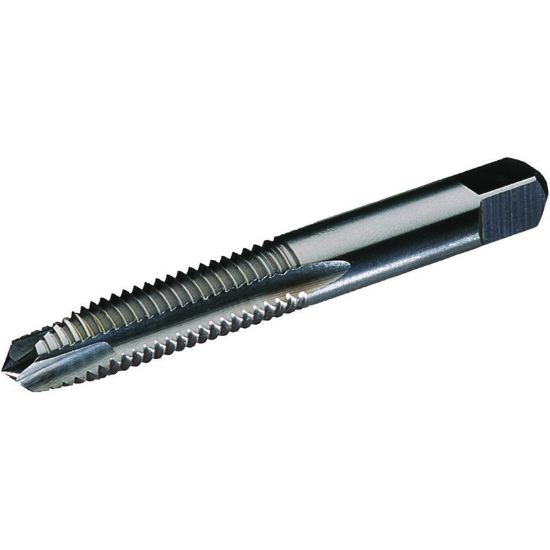

WIDIA/KENNAMETAL 19921 M4-0.70MM Cut Spiral Point Plug 3.0P-5.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19921
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Made In USA No
Performance Rating General Performance
Coating TiN
Shipping State Ohio
Package Size 1
Dimensional Specifications
Overall Len 2.1250 53.98MM
Thread Type Metric
Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Thread Limit D4
Flute Direction R - Right
Shank/Pilot Dia 0.1680 4.27MM
Length Type Standard
Thread Pitch 0.70MM
Dimension Standard ANSI/ANSI
Thread Size M4
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Flutes/Inserts 2
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
