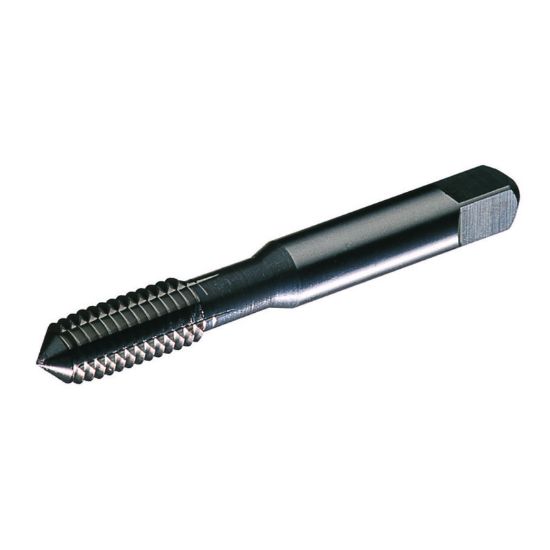

WIDIA/KENNAMETAL 19828 No.10-32.00TPI Roll Form Plug 3.0P-5.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19828
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Application Roll Form Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating General Performance
Package Size 1
Coating TiN
Made In USA No
Dimensional Specifications
Thread Limit H4/GH4
Tap Square 0.1520
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Cut Rating <30HRC Steel, Stainless Steel
Flute Direction R - Right
Length Type Standard
Tap Style Roll Form
Machine Side Connection Type Tap Collet
Tool Material Steel
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Overall Len 2.3800 60.45MM
Drill Range 0.1740 4.42MM - 0.1780 4.52MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
