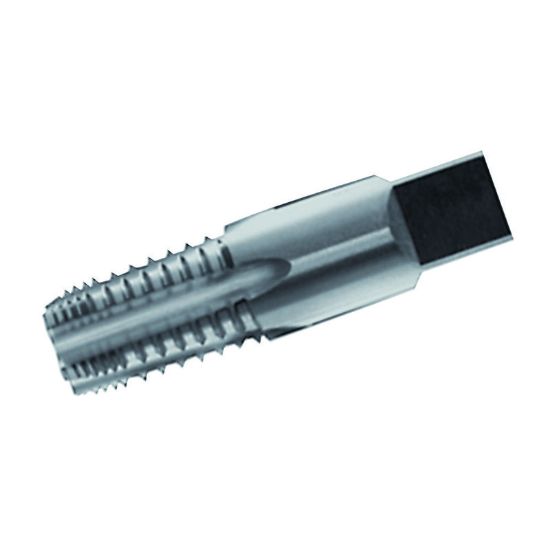

WIDIA/KENNAMETAL 19675 3/4-14.00TPI Pipe Spiral Flute Pipe 3.0P-5.0P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19675
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Tapping, Spiral Flute Pipe
Made In USA No
Coating Steam Oxide
Performance Rating General Performance
Shipping State Ohio
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Length Type Standard
Flutes/Inserts 5
Machine Side Connection Type Tap Collet
Drill Range 0.9059 23.01MM
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Thread Size 3/4"
Dimension Standard ANSI/ANSI
Tap Type Pipe
Tap Chamfer 3.0P-5.0P
Thread Pitch 14.00TPI
Shank/Pilot Dia 0.9063 23.02MM - 29/32
Overall Len 3.2520 82.60MM
Thread Limit PIPE
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Square 0.6790
Tap Style Pipe Spiral Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
