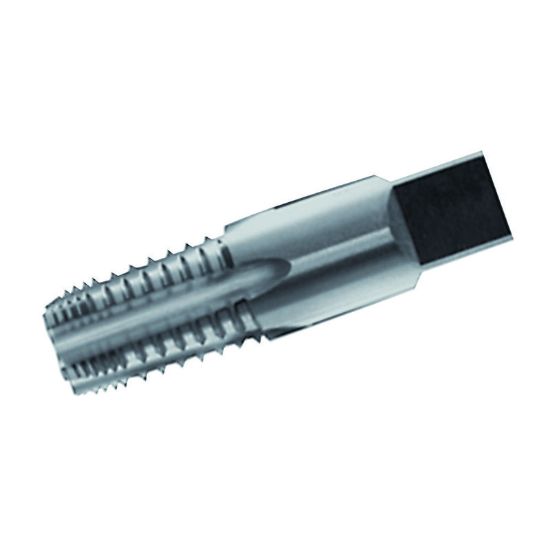

WIDIA/KENNAMETAL 19655 1/4-18.00TPI Pipe Spiral Flute Pipe 3.0P-5.0P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19655
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Spiral Flute Pipe, Tapping, Pipe Tapping
Shipping State Ohio
Made In USA No
Coating Steam Oxide
Performance Rating General Performance
Dimensional Specifications
Thread Pitch 18.00TPI
Thread Limit PIPE
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Style Pipe Spiral Flute
Thread Size 1/4"
Drill Range 0.4378 11.12MM
Tap Square 0.4210
Tap Chamfer 3.0P-5.0P
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tool Material Steel
Flutes/Inserts 5
Overall Len 2.4370 61.90MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
