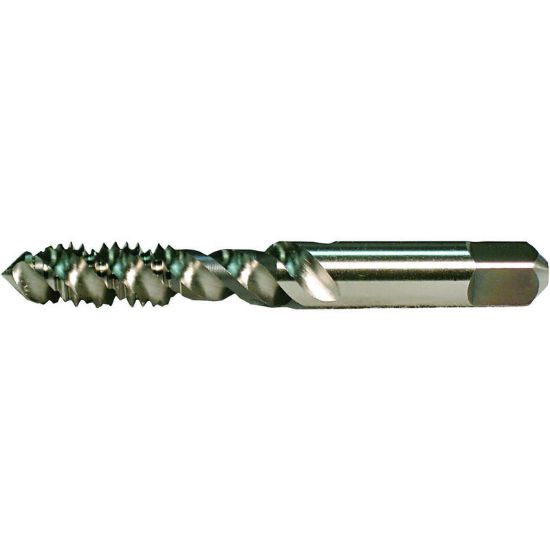

WIDIA/KENNAMETAL 19646 7/16-14.00TPI Cut Spiral Flute Plug 3.0P-5.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19646
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Performance Rating General Performance
Made In USA No
Shipping State Ohio
Dimensional Specifications
Thread Pitch 14.00TPI
Overall Len 3.1560 80.16MM
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Flutes/Inserts 3
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Style Cut Spiral Flute
Tool Material Steel
Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Dimension Standard ANSI/ANSI
Tap Square 0.2420
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Thread Size 7/16"
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
