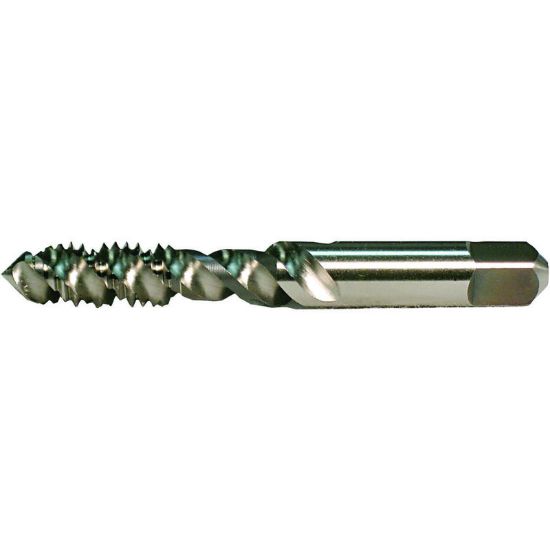

WIDIA/KENNAMETAL 19629 No.10-24.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19629
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating General Performance
Coating TiN
Shipping State Ohio
Made In USA No
Dimensional Specifications
Tool Material Steel
Thread Size No.10
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.1940 4.93MM
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Tap Chamfer 1.5P-2.5P
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Square 0.1520
Overall Len 2.3740 60.30MM
Flutes/Inserts 3
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Length Type Standard
Tap Type Bottoming
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
