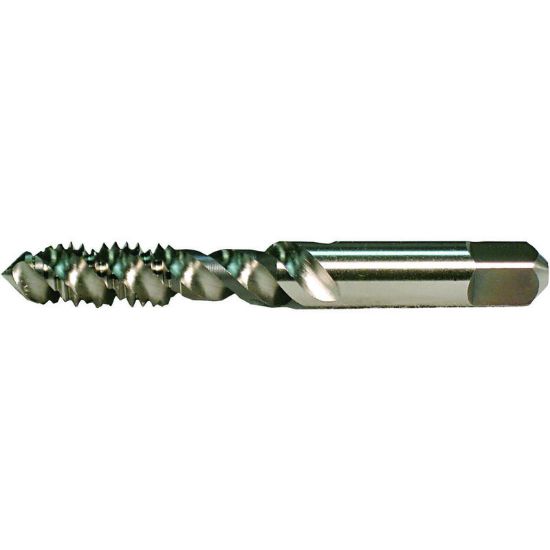

WIDIA/KENNAMETAL 19628 No.10-24.00TPI Cut Spiral Flute Plug 3.0P-5.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19628
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, Through Hole Tapping, Cut Tapping
Performance Rating General Performance
Coating TiN
Shipping State Ohio
Made In USA No
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Tool Material Steel
Overall Len 2.3740 60.30MM
Machine Side Connection Type Tap Collet
Thread Pitch 24.00TPI
Flutes/Inserts 3
Flute Direction R - Right
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Length Type Standard
Thread Size No.10
Tap Style Cut Spiral Flute
Thread Type NC/UNC
Thread Limit H3/GH3
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.1940 4.93MM
Tap Square 0.1520
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
