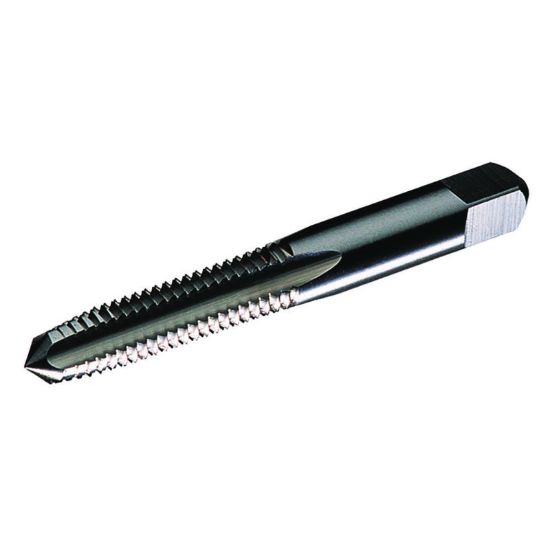

WIDIA/KENNAMETAL 19615 No.10-32.00TPI Hand Tap Plug 3.0P-5.0P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19615
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Made In USA No
Coating Steam Oxide
Shipping State Ohio
Performance Rating General Performance
Dimensional Specifications
Thread Limit H3/GH3
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 4
Tap Style Hand Tap
Tool Material Steel
Overall Len 2.3740 60.30MM
Machine Side Connection Type Tap Collet
Flute Direction R - Right
Length Type Standard
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Square 0.1520
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Thread Size No.10
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
