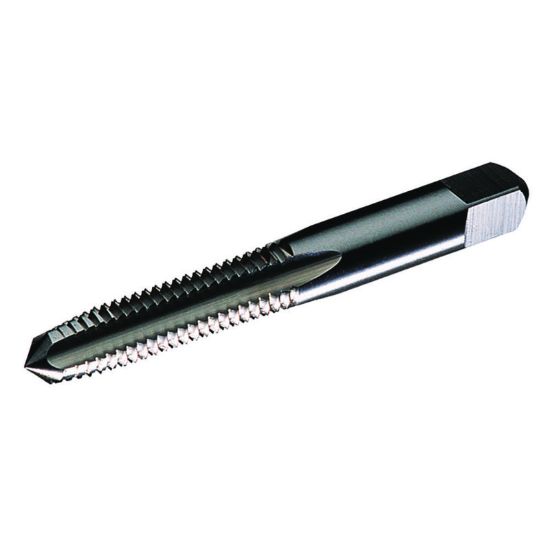

WIDIA/KENNAMETAL 19363 7/8-14.00TPI Hand Tap Bottoming 1.0P-2.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19363
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Blind Hole Tapping, Bottom Tapping, Cut Tapping, Tapping
Shipping State Ohio
Made In USA No
Performance Rating General Performance
Coating TiN
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Chamfer 1.0P-2.0P
Tool Material Steel
Tap Type Bottoming
Thread Pitch 14.00TPI
Thread Limit H4/GH4
Shank/Pilot Dia 0.6970 17.70MM
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Tap Style Hand Tap
Thread Size 7/8"
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Drill Range 0.8008 20.34MM - 0.8193 20.81MM
Tap Square 0.5230
Machine Side Connection Type Tap Collet
Overall Len 4.6870 119.05MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
