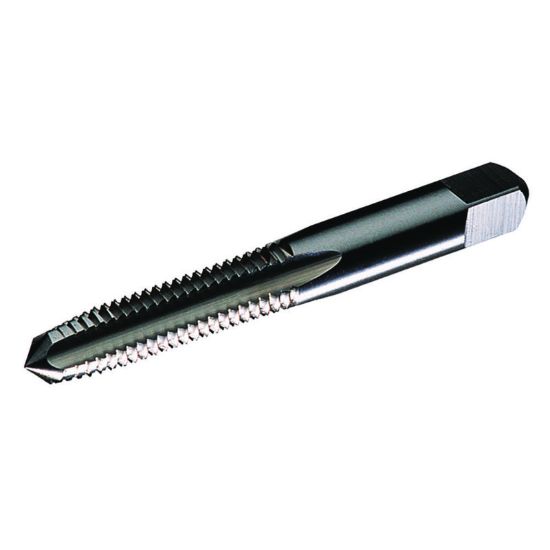

WIDIA/KENNAMETAL 19343 3/4-16.00TPI Hand Tap Bottoming 1.0P-2.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19343
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Bottom Tapping, Tapping, Cut Tapping
Shipping State Ohio
Made In USA No
Coating TiN
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 4.2520 108.00MM
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Machine Side Connection Type Tap Collet
Tap Square 0.4420
Thread Pitch 16.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tool Material Steel
Drill Range 0.6850 17.40MM - 0.7012 17.81MM
Thread Size 3/4"
Shank/Pilot Dia 0.5900 14.99MM
Thread Limit H3/GH3
Flutes/Inserts 4
Tap Style Hand Tap
Tap Chamfer 1.0P-2.0P
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Contractor Yes
Job Shop Yes
