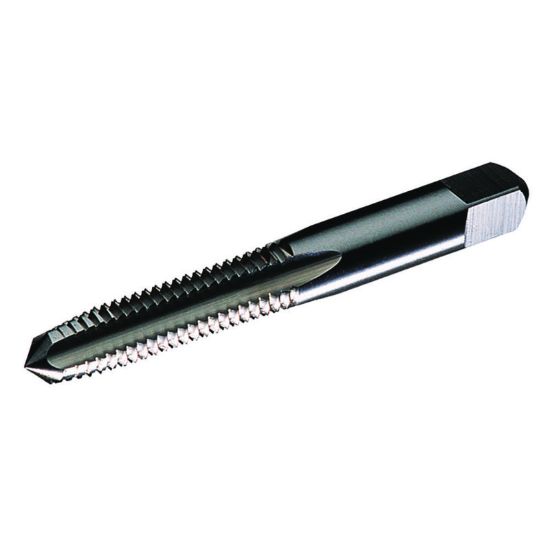

WIDIA/KENNAMETAL 19233 No.10-24.00TPI Hand Tap Plug 3.0P-5.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19233
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Package Size 1
Application Cut Tapping, Tapping, Plug Tapping, Through Hole Tapping
Performance Rating General Performance
Made In USA No
Coating TiN
Dimensional Specifications
Tap Square 0.1520
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Thread Size No.10
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Thread Pitch 24.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 4
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Tap Style Hand Tap
Tool Material Steel
Overall Len 2.3740 60.30MM
Dimension Standard ANSI/ANSI
Flute Direction R - Right
Length Type Standard
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
