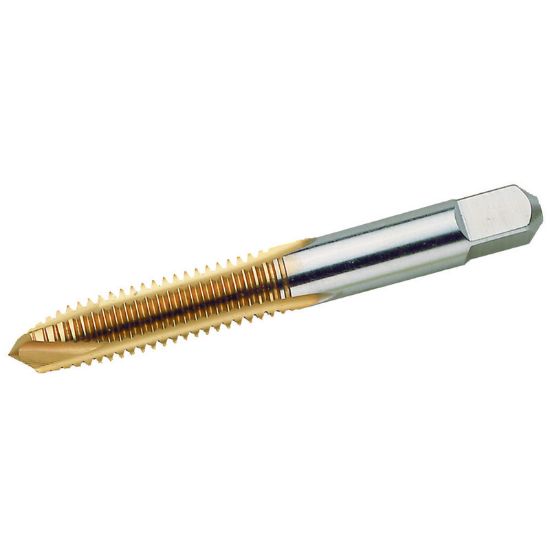

WIDIA/KENNAMETAL 19119 3/4-10.00TPI Cut Spiral Point Plug 3.0P-5.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19119
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Plug Tapping, Cut Tapping, Tapping
Shipping State Ohio
Coating TiN
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 4.2520 108.00MM
Drill Range 0.6461 16.41MM - 0.6720 17.07MM
Tool Material Steel
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Thread Pitch 10.00TPI
Machine Side Connection Type Tap Collet
Tap Square 0.4420
Tap Style Cut Spiral Point
Thread Size 3/4"
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.5900 14.99MM
Flutes/Inserts 3
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
