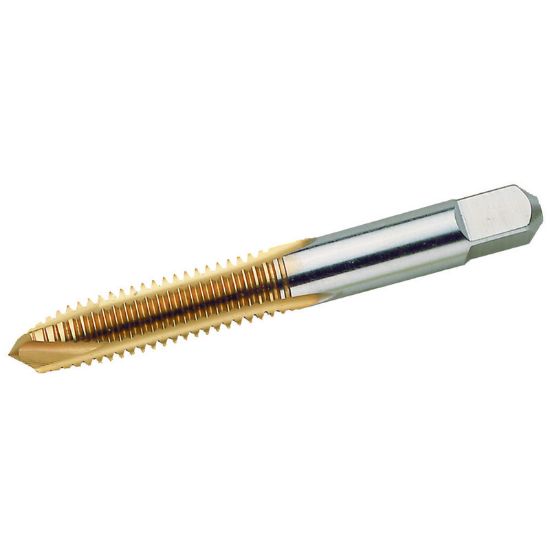

WIDIA/KENNAMETAL 19113 7/16-14.00TPI Cut Spiral Flute Plug 3.0P-5.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19113
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Package Size 1
Shipping State Ohio
Performance Rating General Performance
Coating TiN
Dimensional Specifications
Flutes/Inserts 3
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Thread Pitch 14.00TPI
Overall Len 3.1560 80.16MM
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Style Cut Spiral Flute
Thread Size 7/16"
Dimension Standard ANSI/ANSI
Tap Square 0.2420
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Tool Material Steel
Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
