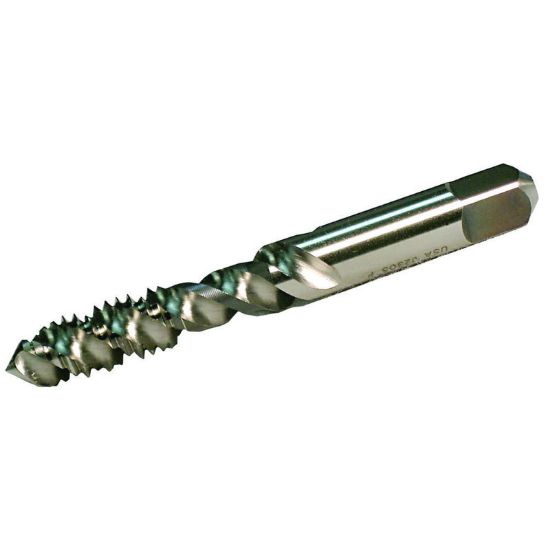

WIDIA/KENNAMETAL 19054 M8-1.25MM Cut Spiral Flute Plug 3.0P-5.0P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19054
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Shipping State Ohio
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Dimensional Specifications
Flute Direction R - Right
Overall Len 2.7200 69.09MM
Length Type Standard
Thread Limit D5
Machine Side Connection Type Tap Collet
Flutes/Inserts 3
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Style Cut Spiral Flute
Dimension Standard ANSI/ANSI
Thread Size M8
Thread Type Metric
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Thread Pitch 1.25MM
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
