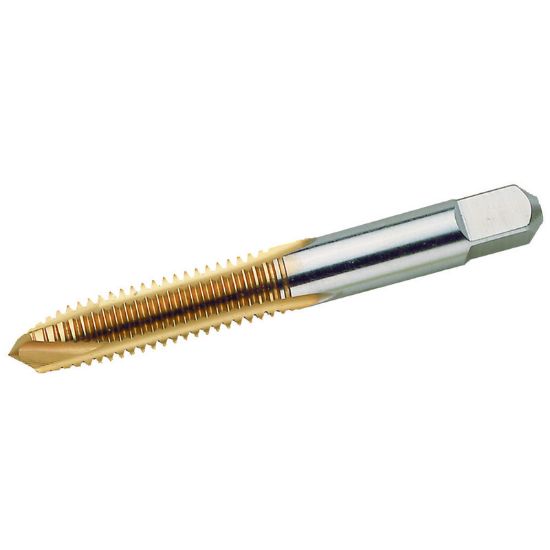

WIDIA/KENNAMETAL 19039 No.8-32.00TPI Cut Spiral Point Plug 3.0P-5.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19039
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Package Size 1
Performance Rating General Performance
Made In USA No
Coating TiN
Shipping State Ohio
Dimensional Specifications
Tool Material Steel
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Dimension Standard ANSI/ANSI
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 2
Tap Square 0.1310
Length Type Standard
Machine Side Connection Type Tap Collet
Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Style Cut Spiral Point
Thread Pitch 32.00TPI
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Thread Size No.8
Overall Len 2.1250 53.98MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
