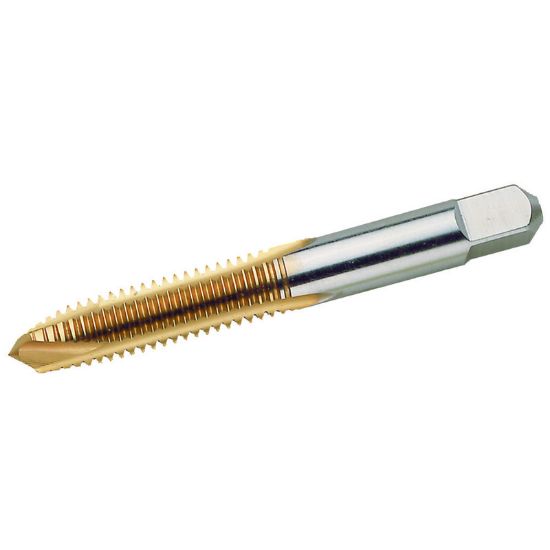

WIDIA/KENNAMETAL 19031 No.6-32.00TPI Cut Spiral Point Plug 3.0P-5.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19031
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Package Size 1
Shipping State Ohio
Coating TiN
Performance Rating General Performance
Dimensional Specifications
Thread Size No.6
Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Flutes/Inserts 2
Length Type Standard
Thread Pitch 32.00TPI
Tap Type Plug
Tool Material Steel
Overall Len 2.0000 50.80MM
Tap Square 0.1100
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.1410 3.58MM
Tap Chamfer 3.0P-5.0P
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
