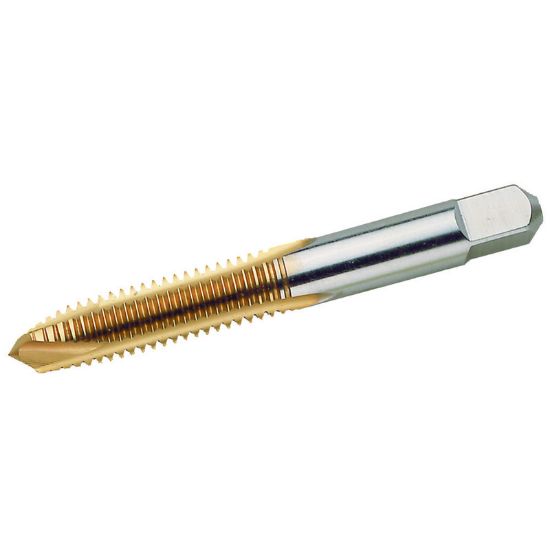

WIDIA/KENNAMETAL 19001 No.0-80.00TPI Cut Spiral Point Plug 3.0P-5.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID19001
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Plug Tapping, Tapping, Through Hole Tapping, Cut Tapping
Performance Rating General Performance
Package Size 1
Coating TiN
Shipping State Ohio
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Thread Pitch 80.00TPI
Flute Direction R - Right
Tap Square 0.1100
Length Type Standard
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tool Material Steel
Thread Limit H3/GH3
Flutes/Inserts 2
Thread Size No.0
Overall Len 1.6250 41.28MM
Drill Range 0.0469 1.19MM - 0.0500 1.27MM
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Tap Style Cut Spiral Point
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
