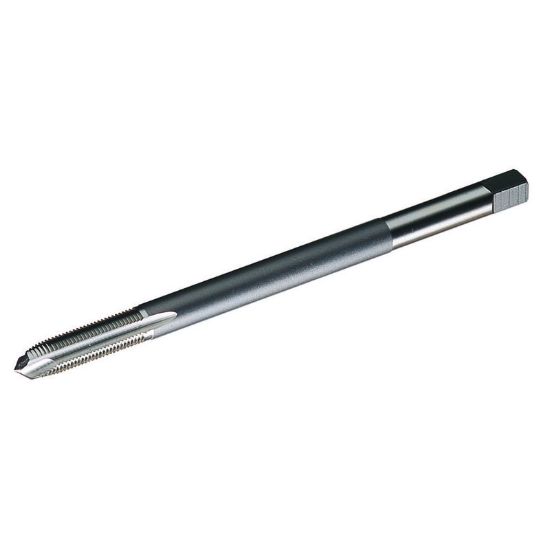

WIDIA/KENNAMETAL 18936 1/4-20.00TPI Cut Spiral Point Plug 3.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID18936
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Made In USA No
Package Size 1
Shipping State Ohio
Performance Rating General Performance
Dimensional Specifications
Tool Material Steel
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Flutes/Inserts 2
Length Type Long
Dimension Standard ANSI/ANSI
Flute Direction R - Right
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Square 0.1910
Thread Size 1/4"
Overall Len 6.0000 152.40MM
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Tap Style Cut Spiral Point
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
