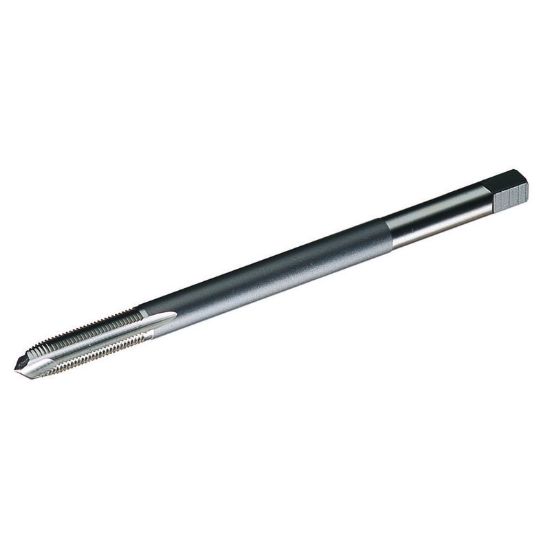

WIDIA/KENNAMETAL 18930 No.6-32.00TPI Cut Spiral Point Plug 3.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID18930
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Through Hole Tapping, Plug Tapping, Tapping
Performance Rating General Performance
Made In USA No
Shipping State Ohio
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Tap Square 0.1100
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 6.0000 152.40MM
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Thread Size No.6
Tool Material Steel
Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Thread Type NC/UNC
Thread Limit H3/GH3
Flutes/Inserts 2
Length Type Long
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
