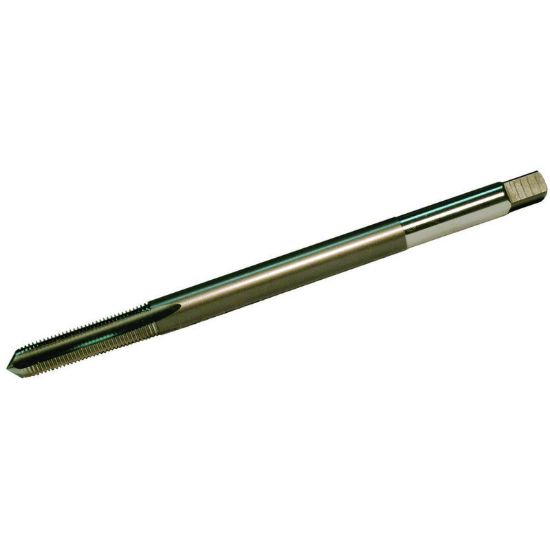

WIDIA/KENNAMETAL 18891 No.8-32.00TPI Hand Tap Plug 3.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID18891
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Package Size 1
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Thread Size No.8
Overall Len 6.0000 152.40MM
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 4
Tap Square 0.1310
Tap Style Hand Tap
Length Type Long
Tool Material Steel
Thread Pitch 32.00TPI
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
