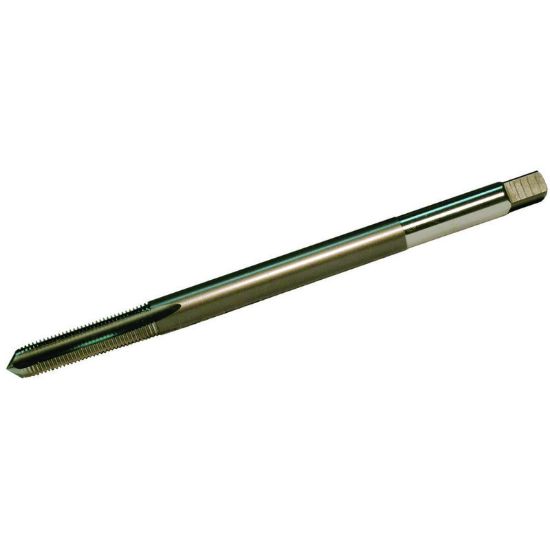

WIDIA/KENNAMETAL 18836 No.10-32.00TPI Hand Tap Plug 3.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID18836
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Made In USA No
Performance Rating General Performance
Shipping State Ohio
Package Size 1
Dimensional Specifications
Thread Limit H3/GH3
Flute Direction R - Right
Flutes/Inserts 4
Tap Style Hand Tap
Length Type Long
Machine Side Connection Type Tap Collet
Tool Material Steel
Overall Len 6.0000 152.40MM
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Square 0.1520
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Thread Size No.10
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.1940 4.93MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
